Dustproof Mini Microswitch(G91)-Dustproof Miniature Switch
| Place Of Origin | Guangdong, China (Mainland) |
| Brand Name | Unionwell |

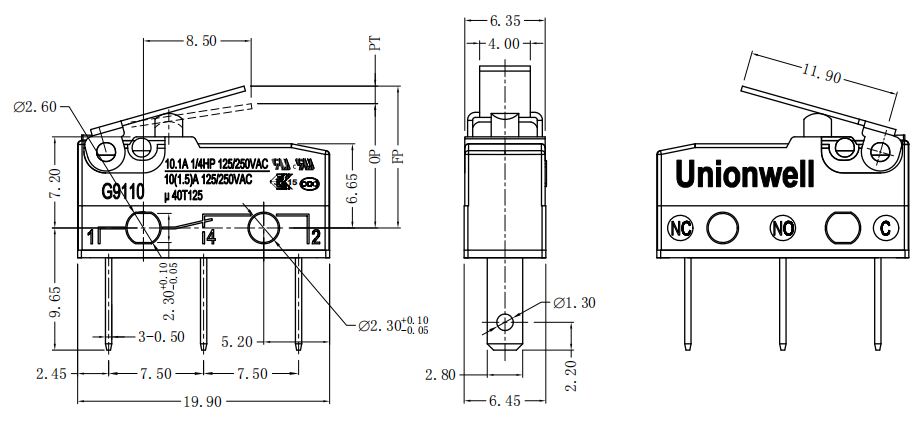

| Model Number | G9110-250D20D1U |
| Electrical Rating | ENEC/CQC: 10(1.5)A 125/250VAC μ 40T125 UL/cUL: 10.1A 1/4HP 125/250VAC |
| Operating Force | 250gf Max |
| Terminal Style | 110# Quick Connect (2.8*0.5mm) |
| Construction | Mounting Hole 2.3mm |
| Circuit Code | SPDT |
The Features Of Dustproof Miniature Switch
- Small Compact Size
- Variety Of Levers And Terminals
- Global Safety Approvals
- Long Life And High Reliability
- Customized Designs
The Parameters Of Dustproof Miniature Switch
| Rating | P1 | ENEC/UL: 0.1A 125/250V 48VDC Gold Plated Contact Optional |
| 05 | ENEC: 5A 125/250VAC;5A 1/8HP,125/250VAC | |
| 10 | ENEC: 10(1.5)A 125/250VAC UL: 10A 1/4HP 125/250VAC |
|
| Operating Frequency | Electrical | 10~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative) | 100mΩ Max | |
| Insulation Resistance (at 500VDC) | 100MΩ Min | |
| Dielectric Strength | AC 1,000V RMS (50~60Hz) | |
| Operating Temperature | -40°C~+125°C or -40°C~+85°C |
|
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | 10,000~100,000 cycles/Depend on part No. |
| Mechanical | 1,000,000 cycles | |
Our Advantage
Packing
Shipping
FAQ
Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.
Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.
Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.
Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.
Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
