High Contact Reliability Push-Button Switches

Place Of Origin Guangdong, China (Mainland)
Brand Name Unionwell

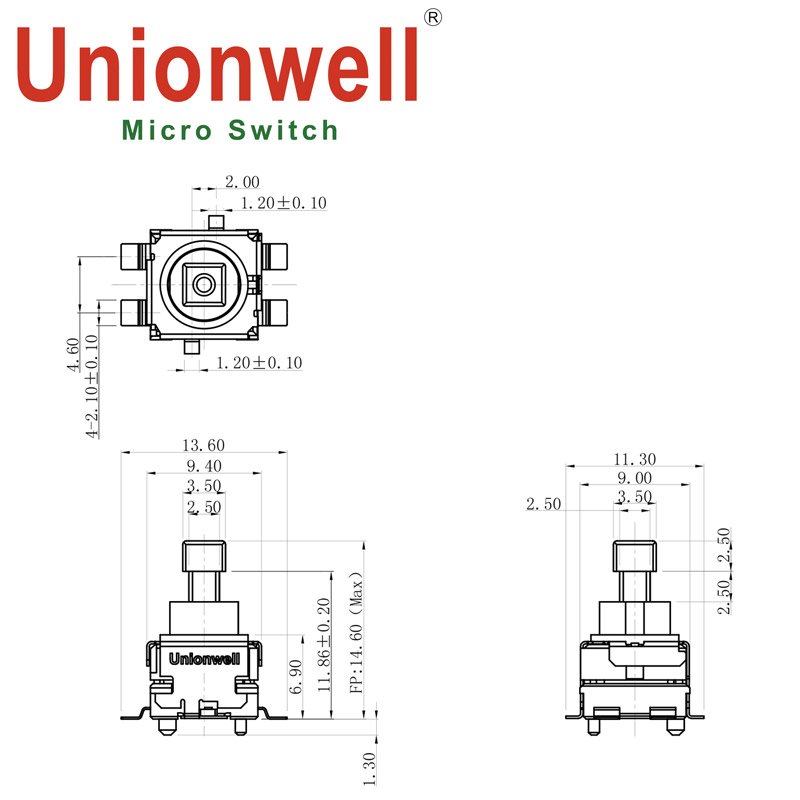

Model Number G25-2112U
Overtravel Non-locking
Operating Force 300gf
Terminal Shape SMD terminal
Function Non-locking



Contact Us
[google-translator]

The Features Of Push-Button Switch

  1. High contact reliability pushbutton switches for micro loads
  2. High stability in high temperature environment
  3. Have two function modes of self-locking and non-locking
  4. Feel smooth and good operating experience
  5. There are two welding process options of DIP and SMT

The Parameters Of Push-Button Switch

Operating Frequency 15~20/minute
Insulation Resistance ≥3MΩ（VDC 100V Insulation Resistance Meter）
Contact Resistance(Initiative) Terminals ≤100mΩ
Dielectric Strength Between Terminals of The Same Pole AC100V,50/60HZ,1min.
Between Each Terminal and Non-live Metal Parts AC1500V,50/60HZ,1min.
Service Life Electrical 30，000/cycles(15~20/min) 1A 14.5VDC 10mA 5VDC
Mechanical 300,000/cycles（60/min）
Operating Temperature -40～+85°C
Operating Humidity <95%RH（+5～+35°C）



Arcade Microswitch

Our Advantage

Arcade Microswitch

Packing

Arcade Microswitch

Shipping

Arcade Microswitch

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
