IP67 Motor Electronic Lock Switch G23A
| Feature | Description |
|---|---|
| Application | Automotive charging port locking and safety control |
| Protection Level | IP67, dustproof and waterproof |
| Operating Life | High durability for long-term use |
| Response | Fast and precise motor-driven locking/unlocking |
| Temperature Range | -40°C to +85°C, suitable for automotive environment |
| Reliability | Stable performance under high-frequency operation |
The IP67 motor electronic lock switch G23A is specifically developed for DC charging gun locking systems, enabling “locking upon power-on, unlocking upon full charge” logic. This effectively prevents muzzle erosion and safety hazards caused by live plugging and unplugging. The product features a highly sealed structure, meeting IEC IP67 protection standards, and maintains stable performance in rain, snow, dust, high humidity, and wide temperature ranges (-40°C to 85°C).
The G23A incorporates a high-performance motor with a forward and reverse response time of ≤100ms, ensuring sensitive and precise operation. Its travel is 45°±5°, with locking and holding forces of 700 g.cm and 250 g.cm respectively (without mechanical damage). The rotating block can withstand 200N of strength, ensuring no deformation even after prolonged use. The electronic lifespan is up to 60,000 cycles (12VDC), and it supports both manual and automatic unlocking modes, further enhancing system safety redundancy.
The Feature Of Motor Electronic Lock Switch
High-Sealing Structure Design
Utilizing a fully sealed process, the IP67 protection rating provides excellent resistance to water, dust, moisture, and environmental conditions, enabling long-term stable operation outdoors and in harsh environments.
Reliable Locking with Manual and Automatic Dual-Mode Unlocking
The robust and reliable locking mechanism allows for automatic unlocking controlled by the system’s motor, as well as manual unlocking when necessary, enhancing overall safety and emergency response capabilities.
Clear Locking and Unlocking Positions with Precise Positioning
A 45°±5° travel distance ensures accurate structural positioning and clear feedback during locking and unlocking, effectively ensuring accurate switching between charging states.
Sensitive Motor Forward and Reverse Rotation Response
The built-in high-performance motor boasts a response time ≤100ms, enabling fast and smooth locking and unlocking actions, improving user experience and system efficiency.
Stable and Reliable Lifespan
With an electrical lifespan exceeding 60,000 cycles (12VDC trigger) and stable mechanical performance, it is suitable for high-frequency DC charging scenarios for new energy vehicles.
The Parameters Of Motor Electronic Lock Switch
| Parameter | Specification |
|---|---|
| Permissible Operating Frequency | 12 VDC / Operation Duration 200ms / Pause 2s |
| Insulation Resistance | ≥100MΩ (500VDC insulation resistance tester) |
| Dielectric Strength | Between same poles: 500VAC, 50/60Hz, 1 min |
| Lifespan (Electrical) | 60,000 cycles (12 VDC / Operation Duration 200ms / Pause 2s) |
| Operating Characteristics | |
| Operating Force (OF) | 12 VDC, 700 g·cm Min (No mechanical damage) |
| Holding Force (HF) | 250 g·cm Min (No mechanical damage) |
| Operating Travel (PT) | 45° ± 5° |
| Rotary Block Strength | 200 N (No mechanical damage) |
| Manual Unlock | 250 g·cm Min (No mechanical damage, but should not be operated frequently) |
| Response Time | ≤100ms |
| Protection Structure | IEC IP67 |
| Operating Temperature | -40°C ~ +85°C |
| Operating Humidity | 45% RH ~ 85% RH |
Structural Features

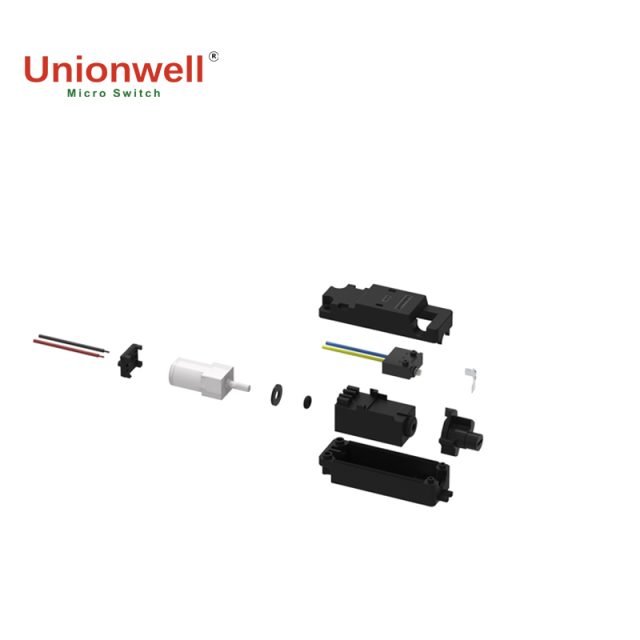

The G23H features an independent sealed cavity design. The internal motor, gear set, and locking mechanism are all waterproof and dustproof, allowing for long-term stable operation in rain, snow, dust, and high humidity environments. The locking rod structure uses high-strength materials, possessing a breaking force of over 200N, significantly improving the impact resistance and service life of the locking structure. A 45° locking pin rotation angle, combined with a precision transmission system, makes locking and unlocking actions smoother and more accurate. The overall structure optimizes torque and speed output, enabling it to complete the action within 200ms, ensuring efficient and safe charging and connection.

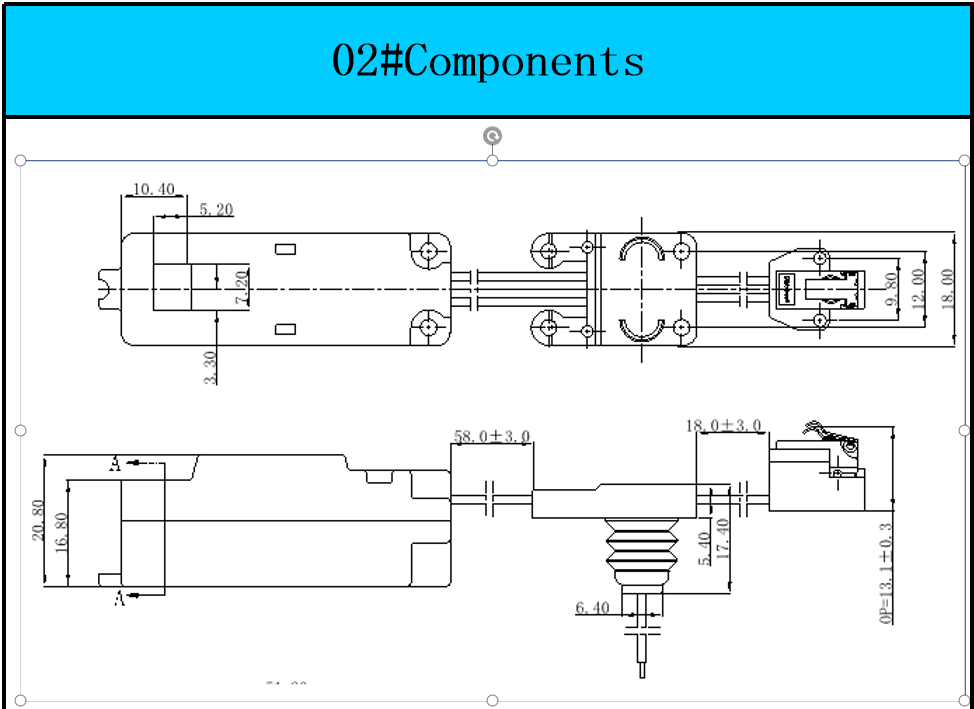

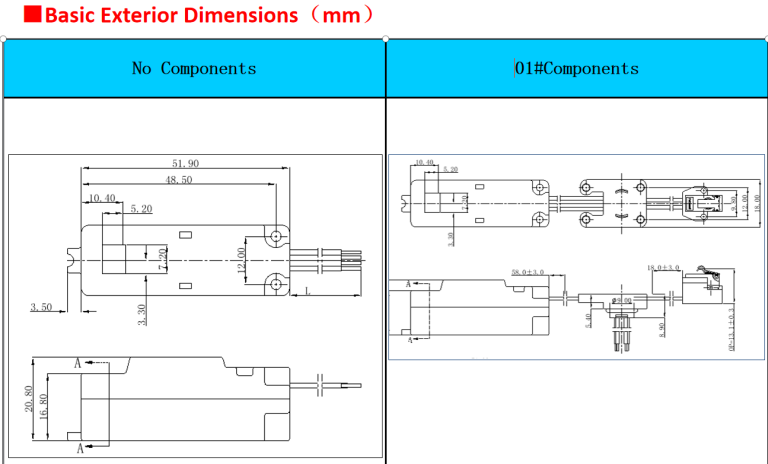

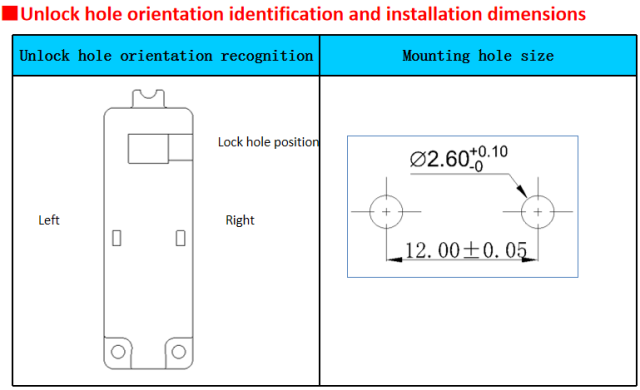

The Drawing Of Motor Electronic Lock Switch
Application Of Motor Electronic Lock Switch
The Unionwell G23A Motor Electronic Lock Switch ensures secure and reliable locking of automotive charging ports. Designed for high sealing and environmental resistance, it protects the charging interface from dust, moisture, and accidental disconnection, meeting IP67 standards. Its precise mechanical positioning guarantees smooth plug engagement and disengagement, while the sensitive response to motor direction ensures safe, rapid locking and unlocking. With long operational life and stable performance, it is an essential component for modern electric vehicle charging systems, enhancing both safety and user convenience.
