Motor Electronic Lock Switch for Charging G23D
| Product Summary – Motor Electronic Lock Switch for Charging | |
|---|---|
| Product Name | G23D Motor Electronic Lock Switch for Charging |
| Category | Automotive Motor Electronic Lock Switch |
| Key Features | IP67 high-sealing design, precise motor-driven locking, reliable lifecycle, stable reverse/forward motor response. |
| Application | Designed for EV charging inlet locks, automotive electronic lock systems, and outdoor charging security modules. |
| SEO Keywords | Motor Electronic Lock Switch for Charging, Motor Electronic Lock Switch |
Nionwell’s newly launched Motor Electronic Lock Switch for Charging (G23D) is a highly reliable electronic locking solution designed for new energy vehicle charging port locking systems. This product features a highly sealed structural design, excellent environmental resistance, and meets IEC IP67 protection standards, maintaining stable operation in harsh outdoor charging environments.
The G23D achieves precise locking and unlocking control through a precision motor drive, and also features manual unlocking functionality. It provides safe and durable electronic lock switch support for smart charging ports, vehicle locking mechanisms, and new energy infrastructure, making it an ideal choice for charging system integrators and automakers.
The Feature Of Motor Electronic Lock Switch for Charging
• Highly sealed structural design, strong environmental adaptability, meets IP67 requirements
• Reliable locking, supports both electric and manual unlocking methods
• Clear locking and unlocking positions, precise positioning, and low risk of accidental operation
• Sensitive forward and reverse motor response, stable operation, and excellent lifespan
• Specifically developed for charging port electronic locks, enabling highly reliable long-term operation
The Parameters Of Motor Electronic Lock Switch for Charging
| Item | Specification | |
|---|---|---|
| Permissible Operating Frequency | 12 VDC / 200 ms operating duration / 2 s interval | |
| Insulation Resistance | ≥100 MΩ (500 VDC insulation resistance tester) | |
| Dielectric Strength | Between terminals of the same polarity | 500 VAC, 50/60 Hz, 1 min |
| Server Life | Electrical Life | 60,000 cycles (12 VDC / 200 ms operating duration / 2 s interval) |
| Action characteristics | Operating Force (OF) | 700 g·cm Min (no mechanical damage) |
| Holding Force (HF) | 250 g·cm Min (no mechanical damage) | |
| Pretravel (PT) | 30° ± 2° | |
| Rotating Block Strength | 200 N (no mechanical damage) | |
| Manual Unlocking Force | 250 g·cm Min (no mechanical damage, not for frequent operation) | |
| Electronic Lock Operating Time | 100 ms (12 VDC) | |
| Protection Rating | IEC IP67 | |
| Operating Temperature | -40°C to +85°C | |
| Operating Humidity | 45% RH to 85% RH | |

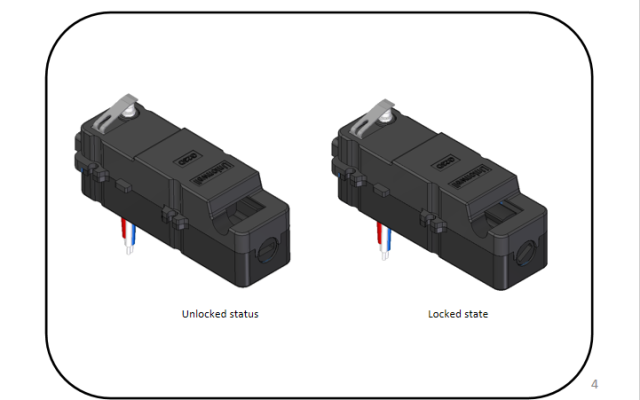

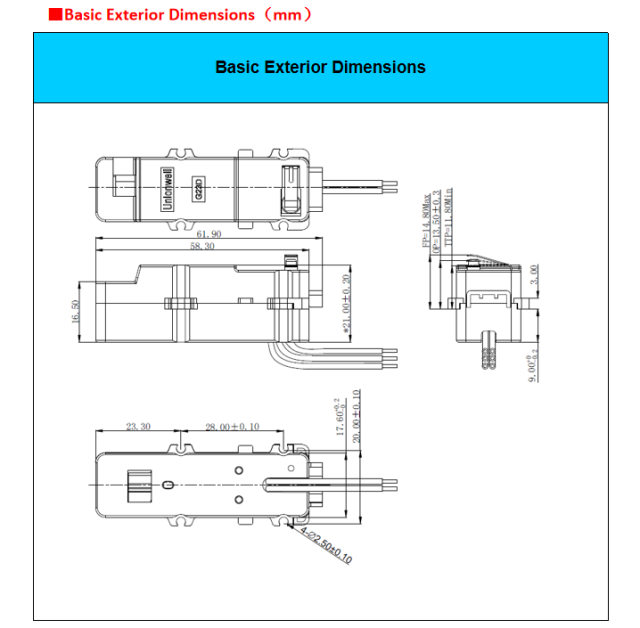

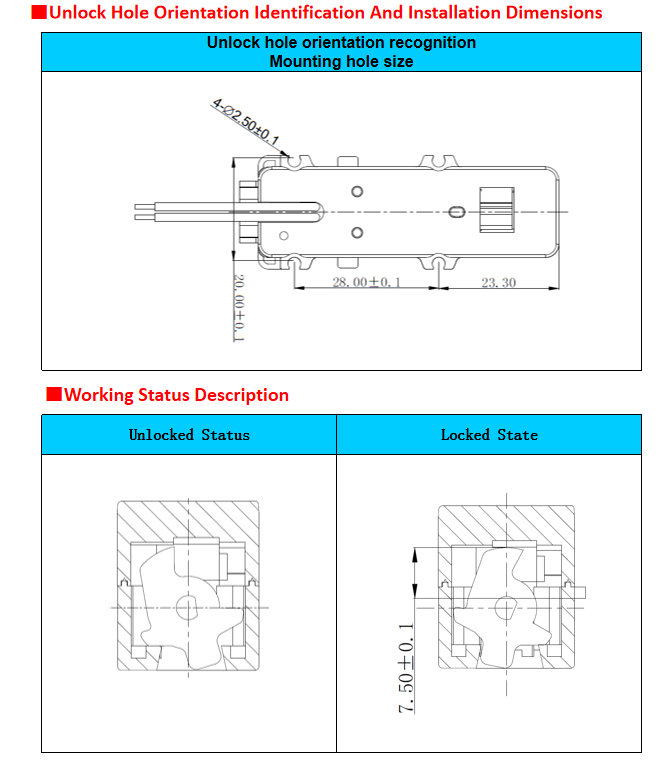

The Drawing Of Motor Electronic Lock Switch for Charging
Application Of Motor Electronic Lock Switch for Charging
The G23D Motor Electronic Lock Switch for Charging is widely used in new energy vehicle charging port locking mechanisms, vehicle electronic lock actuators, intelligent charging system safety locking modules, and outdoor charging pile locking devices. Its long-life motor drive structure and IP67 waterproof rating ensure reliable locking functionality even in complex environments such as high temperature, low temperature, humidity, and rain. It is a high-quality solution for automotive OEMs, charging pile manufacturers, and electronic lock system suppliers.
