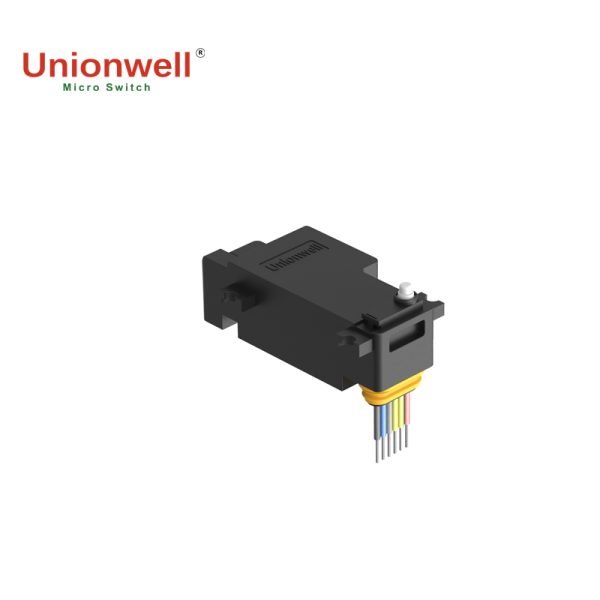

Motor Electronic Lock Switches G23L for DC Charging Gun
| Item | Description |
|---|---|
| Product Name | Motor Electronic Lock Switches G23L for DC Charging Gun |
| Application | Designed for DC charging guns and EV charging locking systems |
| Key Features | High reliability, compact size, stable locking performance, long service life |
| Operating Type | Motor-driven locking switch for safety interlock mechanisms |
| Safety & Durability | Engineered for high stability in EV charging environments |
| Manufacturer | Unionwell – Professional Automotive Micro Switch Manufacturer |
The Unionwell G23L motor electronic lock switches is a high-reliability locking module designed specifically for DC charging guns. Featuring an IP67 high-sealing construction, this switch boasts robust environmental adaptability, stable locking performance, and precise linear drive control. It supports 12VDC operating voltage, offers fast response, and maintains a long service life even in harsh industrial and automotive charging environments.
As a core component of DC charging connectors, the motor electronic lock switches ensures robust locking during power supply and reliable unlocking after full charge, helping manufacturers improve security, prevent hot-plugging, and maintain system durability. This makes it an ideal motor electronic lock switch solution for next-generation DC charging applications.
The Feature Of Motor Electronic Lock Switches G23L for DC Charging Gun
High-sealing switch module compliant with IP67 waterproof rating;
Excellent environmental resistance for outdoor charging conditions;
Stable linear actuation with 30–500mm/s allowable speed;
Precise contact performance with low contact resistance;
Fast 12VDC operation at 120 cycles/min;
Long electrical and mechanical life up to 60,000 cycles;
Structural Features
The G23L features a compact, highly sealed design, integrating a ruggedized housing, precision linear motion components, and a moisture-proof internal structure, achieving an IP67 protection rating. Its optimized actuator structure provides precise free, operating, and release positions, ensuring consistent locking force and stable switching response in high-frequency DC charging environments.
A robust internal contact system minimizes resistance and enhances conductivity reliability, while a reinforced mechanical frame provides excellent durability, torque tolerance, and long-term operational stability. This structural advantage makes the G23L ideal for harsh weather, high humidity, and high-load applications common in DC charging systems.
The Parameters Of Motor Electronic Lock Switches for DC Charging Gun
| Technical Specifications — Motor Electronic Lock Switches G23L | |
|---|---|
| Allowable Operating Frequency | 12VDC / 120 cycles per minute |
| Allowable Linear Operation Speed | 30–500 mm/s |
| Insulation Resistance | ≥100 MΩ (DC 500V megger) |
| Contact Resistance (Initial) | ≤500 mΩ |
| Dielectric Strength | AC 500V |
| Working Temperature | -40℃ to +85℃ |
| Service Life | 60,000 cycles |
| Waterproof Grade | IP67 |
| Use Humidity | Below 95%RH |
| Operating Force | 15 gf Min. |
| Release Position | 7.4 ± 0.30 mm |
| Operation Position | 7.10 ± 0.30 mm |
| Free Position | ≤ 7.9 mm |
| Total Travel Position | 5.30 mm |
| Release Force | 40 gf Max. |

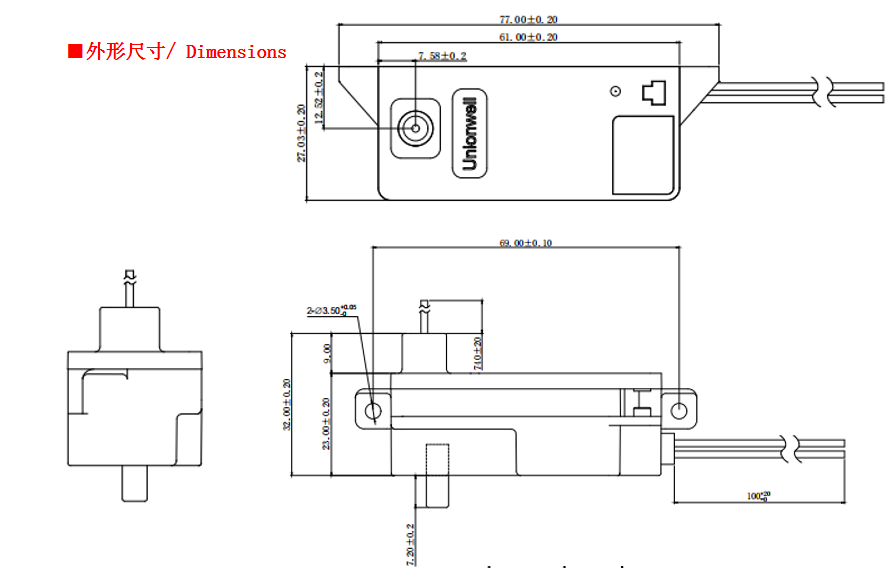

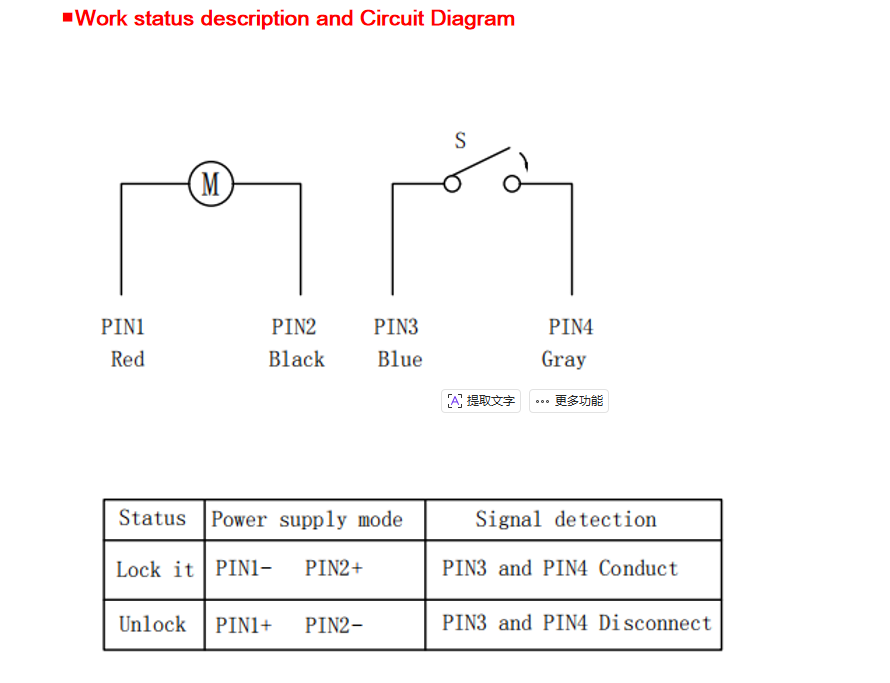

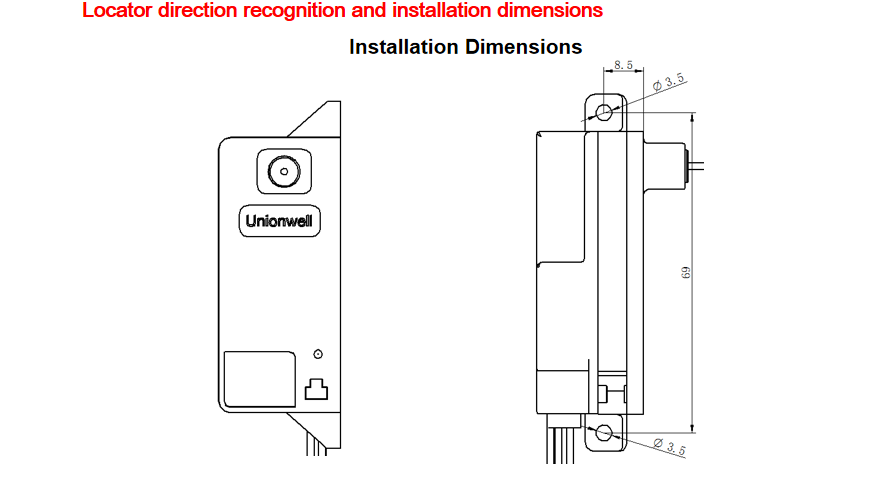

The Drawing Of Motor Electronic Lock Switches
