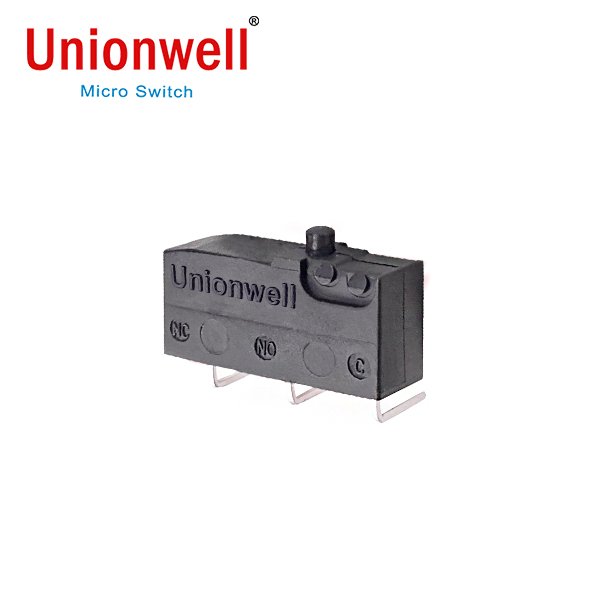

Dustproof Mini Microswitch(G91)-Plunger Micro Switch

Place Of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Number G9105-150L00G1U
Electrical Rating ENEC/CQC: 5A 125/250VAC  5E4 μ
40T125
UL/cUL:
5A 125/250VAC
Operating Force 150gf Max
Terminal Style Lift Side PCB Connect
Lever Type No Lever Pin Plunger(Spherical Surface)
Construction Left Sides Posts
Circuit Code SPDT
Contact Us
[google-translator]

The Features Of Plunger Micro Switch

  • Small Compact Size
  • Variety Of Levers And Terminals
  • Global Safety Approvals
  • Long Life And High Reliability
  • Customized Designs

The Parameters Of Plunger Micro Switch

Rating P1 ENEC/UL: 0.1A 125/250V  48VDC
Gold Plated Contact Optional
05 ENEC: 5A 125/250VAC;5A 1/8HP,125/250VAC
10 ENEC: 10(1.5)A 125/250VAC
UL:
10A 1/4HP 125/250VAC
Operating Frequency Electrical 10~30 cycles/minute
Mechanical 120 cycles/minute
Contact Resistance(Initiative) 100mΩ Max
Insulation Resistance (at 500VDC) 100MΩ Min
Dielectric Strength AC 1,000V RMS (50~60Hz)
Operating Temperature  -40°C~+125°C or
-40°C~+85°C
Storage Humidity 85%RH Max
Service  Life Electrical 10,000~100,000 cycles/Depend on part No.
Mechanical 1,000,000 cycles
Arcade Microswitch

Our Advantage

Arcade Microswitch

Packing

Arcade Microswitch

Shipping

Arcade Microswitch

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
