Slide Micro Switch Mute

Sealed Car Slide Switch(G304)-Slide Micro Switch Mute

Place Of Origin	Guangdong, China (Mainland)
Brand Name	Unionwell

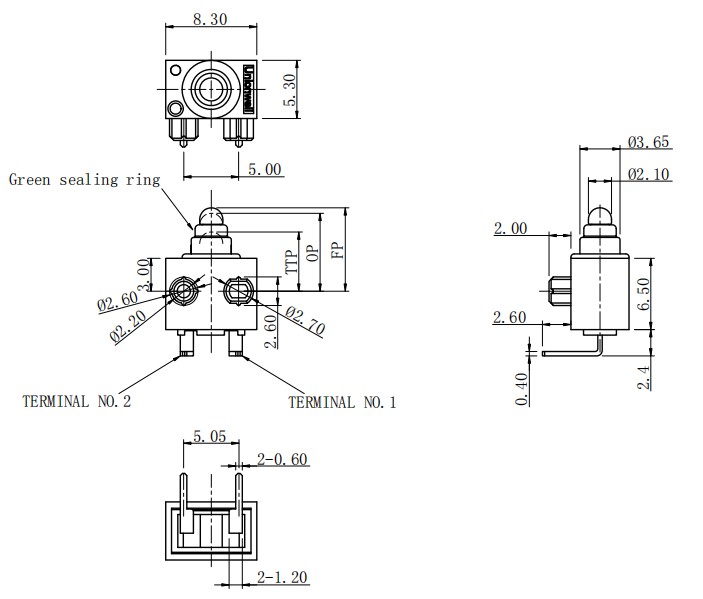

Model Number	G304E-150U00F44H-T009U
Electrical Rating	0.1A 12VDC 5mA 10VDC
Operating Force At Pin Plunger Max	150gf Max.
Terminal Style	Straight Left PCB Terminals
Lever Type	No Lever Pin Plunger
Circuit Code	Slide Type SPST-NC
Shap And Posts	Revers Left Posts
Posts Dimension	Φ2.6X2.0mm Posts

The Features Of Slide Micro Switch Mute

Small Compact Size
Long Life And High Reliability
Sliding Compact Mute Structure
Widely Applicated In Automotive Electronics, Electrical Equipment etc.

The Parameters Of Slide Micro Switch Mute

Electrical Rating	G304E	0.1A 12VDC
		5mA 10VDC
Operating Frequency	Electrical	10～30 Cycles/Minute 1~500mm/s
	Mechanical	120 Cycles/Minute
Contact Resistance(Initial value)		100mΩ Max.
Insulation Resistance		100MΩ Min.
Dielectric Strength	Between Terminals:	AC 500V
	Between Terminals And Covers:	AC 1000V
Operating Humidity		-40℃～+85℃
Service Life	Electrical Life	300,000 Cycles
	Mechanical Life	500,000 Cycles

Our Advantage

Packing

Shipping

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
