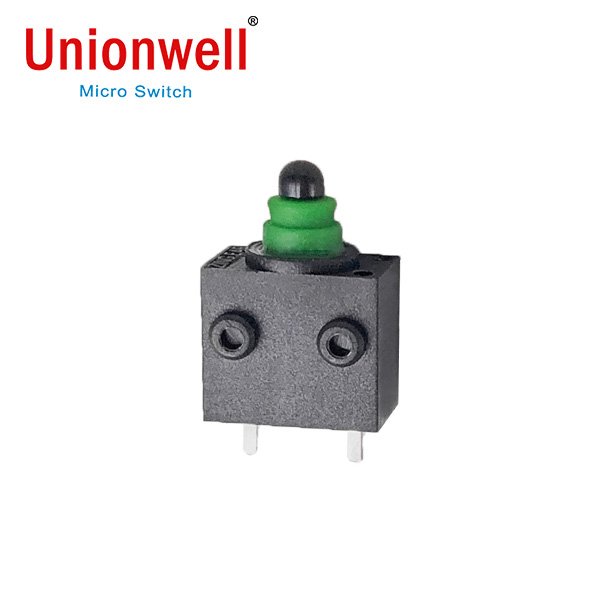

Subminiature Micro Switch Short Solder Terminals

Sealed Car Slide Switch(G304)-
Subminiature Micro Switch Short Solder Terminals

Place Of Origin	Guangdong, China (Mainland)
Brand Name	Unionwell
Model Number	G304G-150M00E40H-HA100CU
Electrical Rating	0.1A 12VDC 50μA 3VDC
Operating Force At Pin Plunger Max	150gf Max
Terminal Style	Short Solder Terminals 6# 7#
Lever Type	No Lever Pin Plunger
Circuit Code	Slide Type SPST-NO
Shape And Posts	G Type Left Posts

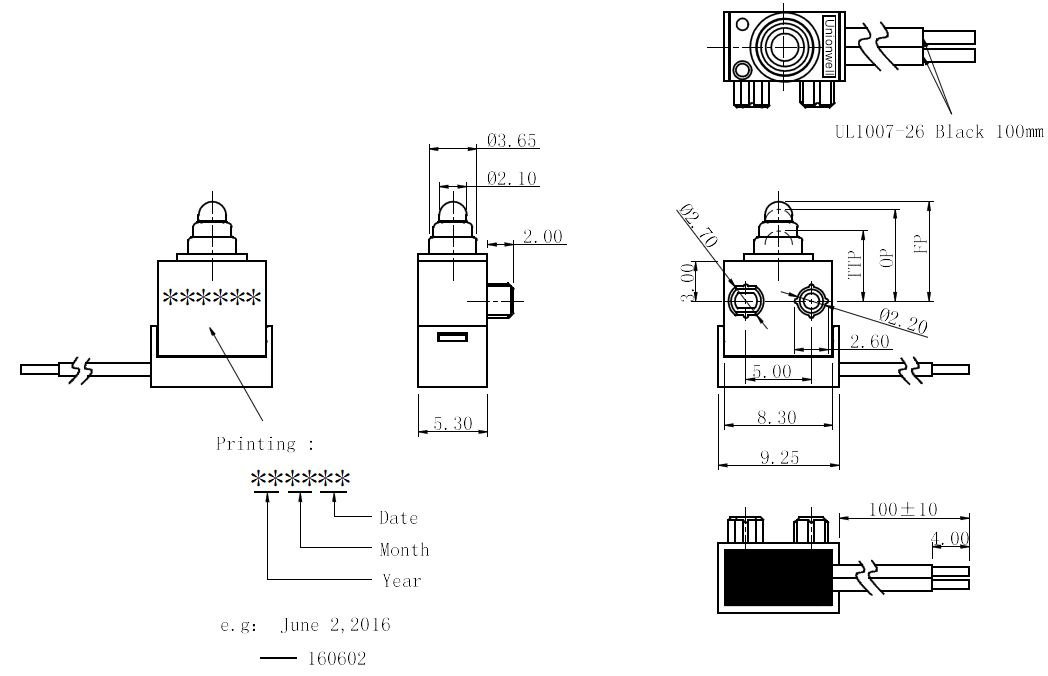

Posts Dimension	Φ2.6×2.0mm
AWG Type(For Wire Type Only)	26#
AWG Number(For Wire Type Only)	UL1007

The Features Of Subminiature Micro Switch Short Solder Terminals

Designed for water and dust-tight (IP67)
Small compact size
Long life and high reliability
Variety of levers
Wide range of wiring terminals
Customized designs
Slide structure
Non-short circuit conversion

The Parameters Of Subminiature Micro Switch Short Solder Terminals

Operating Speed		1-500mm/s
Operating Frequency		120 cycles/minute
Insulation resistance		at 500VDC,100MΩ Min.
Contact Resistance(initial value)	with terminals type	100mΩ Max
	with wire type	500mΩ Max (300mm wire)
Vibration Durability		10-50 HZ
Service Life	Electrical	300,000/cycles DC12V 0.1A DC3V 50uA
	Mechanical	300,000/cycles
Protection Lever		IEC IP67
Dielectric Strength		500VAC (50~60Hz)
Storage Temperature		-40°C~+85°C 60%RH Max
Storage Humidity		95%RH Max（+5°C~+35°C）

Our Advantage

Packing

Shipping

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
