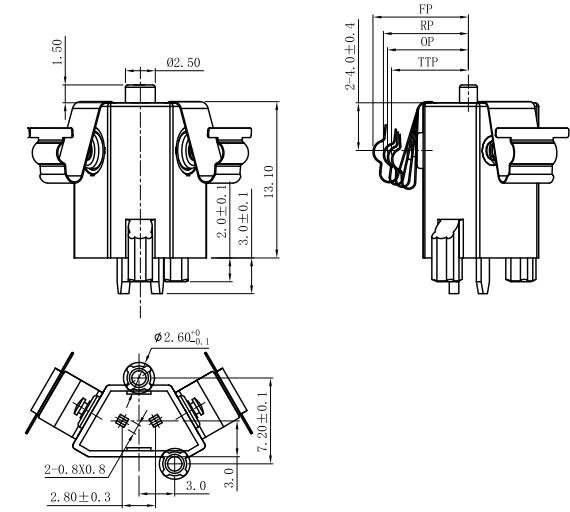

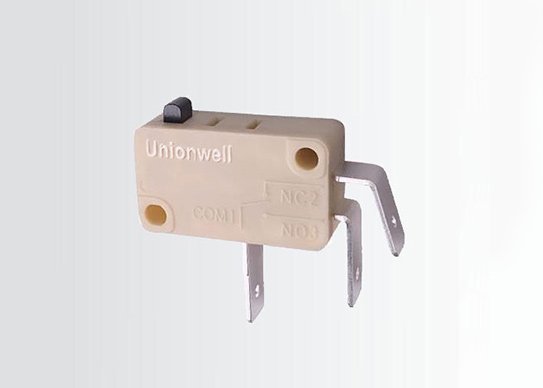

Tact Switch IP67 Microswitch G17

  • Water and dustproof (IP67) Design.
  • Long life, High reliability
  • Widely used in automotive electronics,appliances, industrial control, etc.
Contact Us
[google-translator]

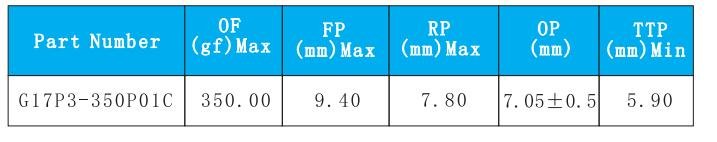

The Parameters Of Tact Switch IP67 Microswitch G17

Rating 20μA~20mA 12VDC
Operating Frequency Electrical 20 cycles/minute
Mechanical G1 Series: 120 cycles/minute
G17 Series: 80 cycles/minute
Contact Resistance(Initial Value) 200mΩ Max
Insulation Resistance 10MΩ Min
Vibration Durability 10~50Hz Amplitude 1.5mm
Voltage Resistance Between Terminals 500VAC (50~60Hz)
Between Terminals And Hosing 1500VAC (50~60Hz)
Service Life Electrical 100,000 cycles
Mechanical 100,000 cycles
Storage Temperature -40°C~+85°C
Storage Humidity 85%RH Max
Unit Weight G1:0.85g
G17:1.1g



Arcade MicroswitchArcade Microswitch

Our Advantage

Arcade Microswitch

Packing

Arcade Microswitch

Shipping

Arcade Microswitch

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
