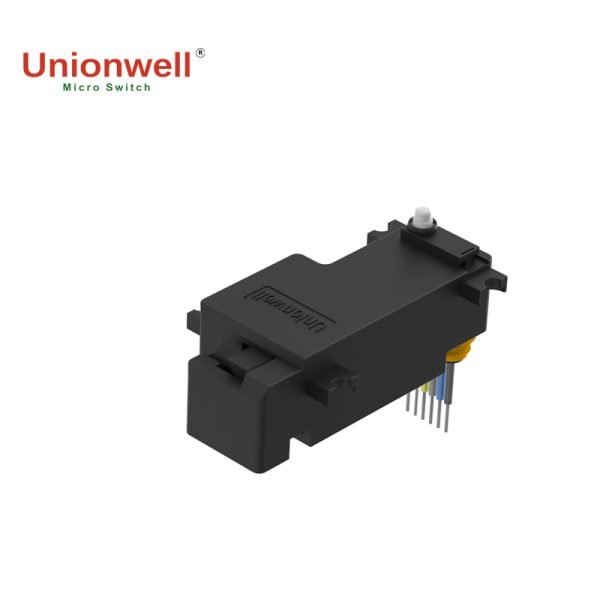

Motor Electronic Lock Switch G23H
| Product Brief — Motor Electronic Lock Switch G23H | |
|---|---|
| Model | G23H |
| Short Description | High-sealing motor-driven electronic lock designed for EV charging connectors; IP67 rated, fast motor response and long service life. |
| Key Features | IP67 waterproofing, reliable motor lock/unlock, manual override, accurate positioning, robust mechanical strength. |
| Typical Application | Locking mechanism for electric vehicle charging guns — auto-lock on power, auto-unlock on full charge to prevent live plug removal. |
| Key Specifications | Operating Voltage: 12VDC; Blockage Current: 1A Max.; No-load Current: 0.3A Max.; Lock Pin Angle: 45°; Torque: ≥15N; Execution Time: 200ms; Service Life: 60,000 cycles. |
| Environment & Durability | Working Temp: -40℃ to +85℃; Dielectric Strength: AC 500V; Destructive Force (lock rod): ≥200N; Humidity: 45%–85%RH. |
| Protection Grade | IP67 (dust-tight and protected against temporary immersion). |
| Manufacturer | Unionwell — Motor Electronic Lock Switch specialist. |
The G23H Motor Electronic Lock Switch is a high-performance locking solution developed by Unionwell for electronic locking systems in new energy vehicles. This product features a fully sealed structure, meets IP67 waterproof and dustproof standards, and boasts strong environmental adaptability and high operational stability.
Utilizing precise motor forward and reverse rotation control technology, the G23H achieves rapid, sensitive, and precise responses during locking and unlocking, ensuring reliable locking of the charging interface when powered on and safe unlocking when fully charged, providing enhanced safety protection for charging equipment. Its long-life structural design, stable electrical performance, and highly reliable mechanical positioning make it a core locking component in various new energy charging connection systems.
The Feature Of Motor Electronic Lock Switch
High-sealing electronic lock with strong environmental resistance, meeting IP67 requirements;
Reliable locking with both manual and automatic unlocking functions;
Clear and precise locking and unlocking positions, accurate and reliable positioning;
Sensitive forward and reverse motor response, long service life, stable and reliable operation.
Specifically designed for automotive charging gun applications, meeting the market’s charging gun application needs.
The Parameters Of Motor Electronic Lock Switch
| Parameters | Specifications |
|---|---|
| Allowable Operating Frequency | 12VDC (200ms operation / 2s pause) |
| Blockage Current | 1A Max. |
| Working Current (No Load) | 0.3A Max. |
| Insulation Resistance (at 500VDC) | 100MΩ Min. |
| Lock Pin Rotation Angle | 45° |
| Dielectric Strength | AC 500V |
| Working Temperature | -40℃ ~ +85℃ |
| Destructive Force of Lock Rod | 200N Min. |
| Work Execution Time | 200ms |
| Lock Rod Torque | 15N Min. |
| Service Life | 60,000 cycles |
| Waterproof Grade | IP67 |
| Use Humidity | 45%RH – 85%RH |
Structural Features
The G23H features an independent sealed cavity design. The internal motor, gear set, and locking mechanism are all waterproof and dustproof, allowing for long-term stable operation in rain, snow, dust, and high humidity environments. The locking rod structure uses high-strength materials, possessing a breaking force of over 200N, significantly improving the impact resistance and service life of the locking structure. A 45° locking pin rotation angle, combined with a precision transmission system, makes locking and unlocking actions smoother and more accurate. The overall structure optimizes torque and speed output, enabling it to complete the action within 200ms, ensuring efficient and safe charging and connection.

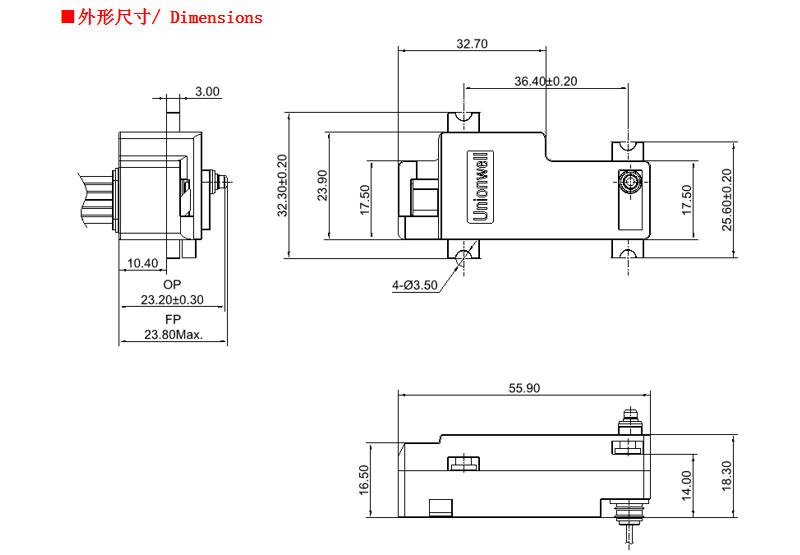

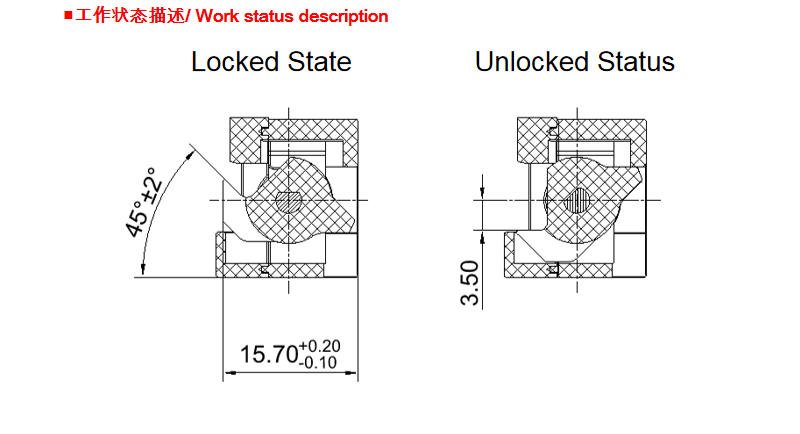

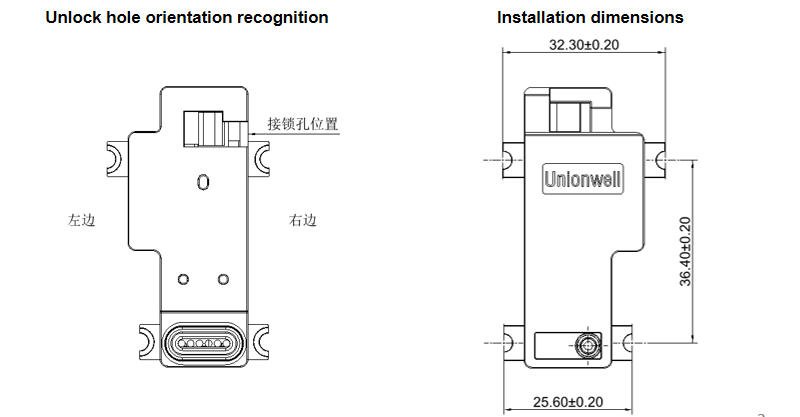

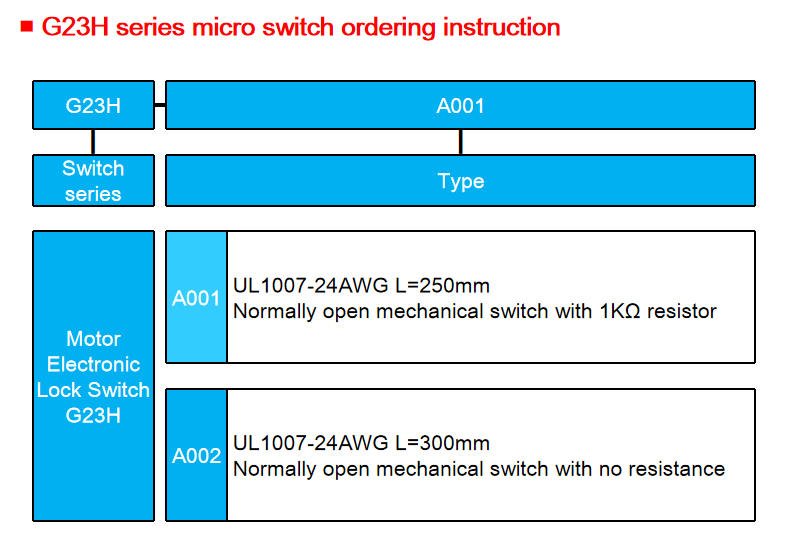

The Drawing Of Motor Electronic Lock Switch
