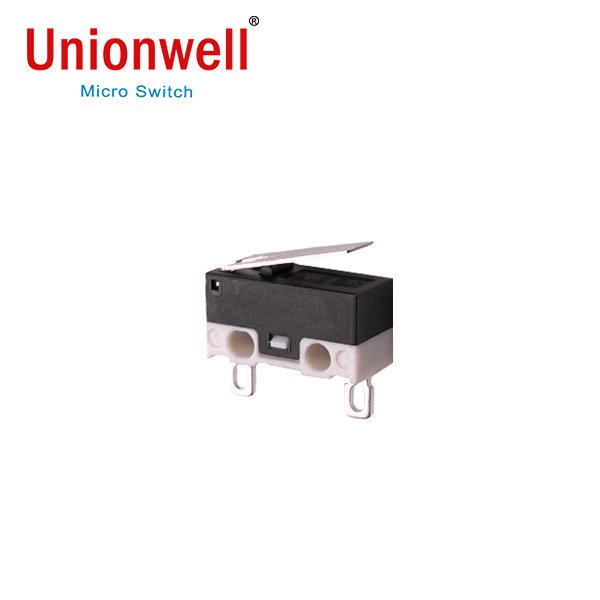

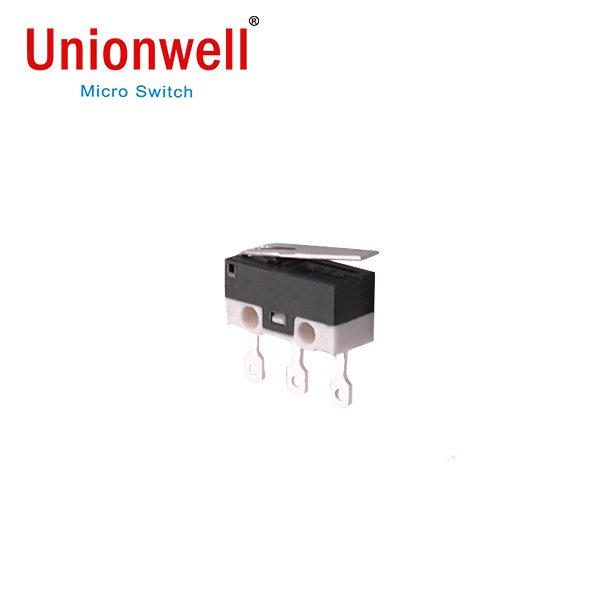

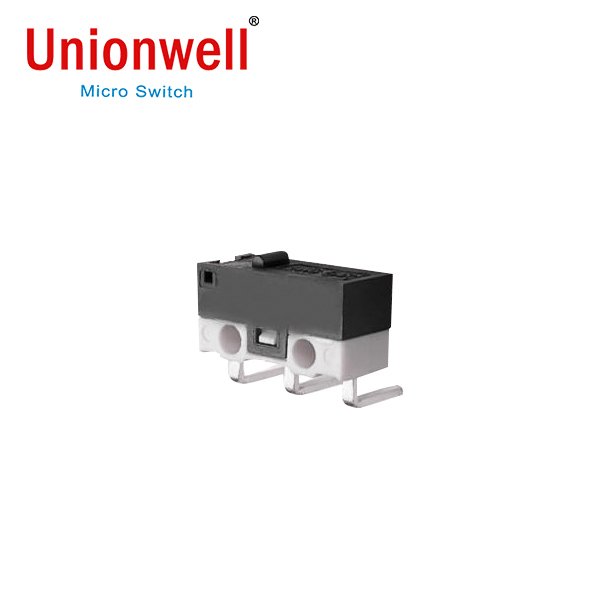

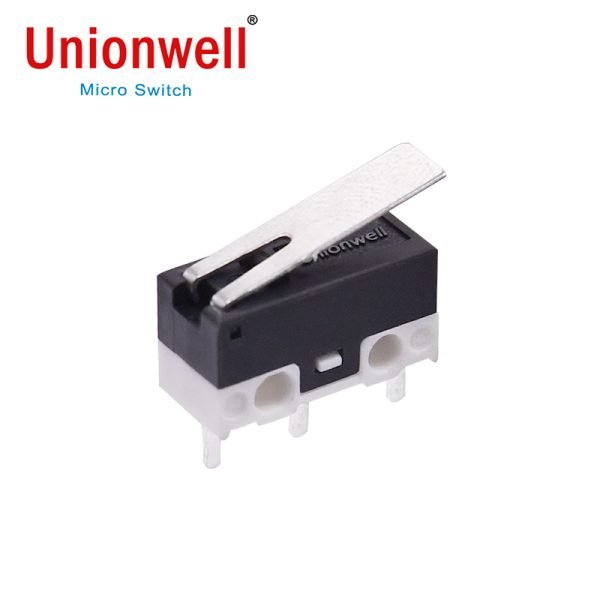

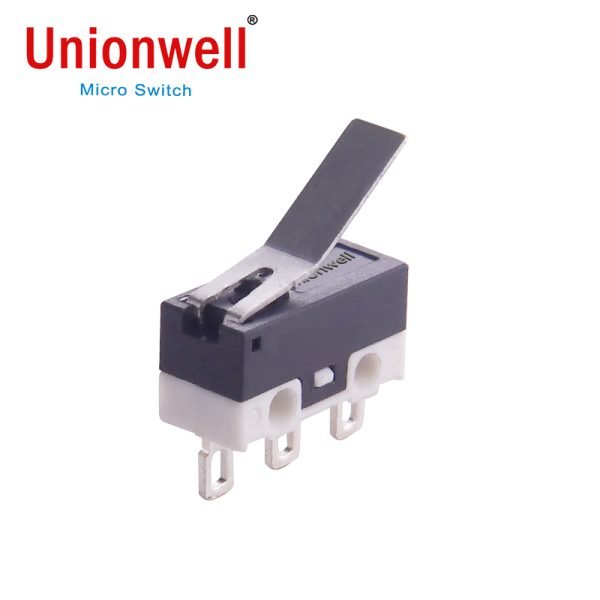

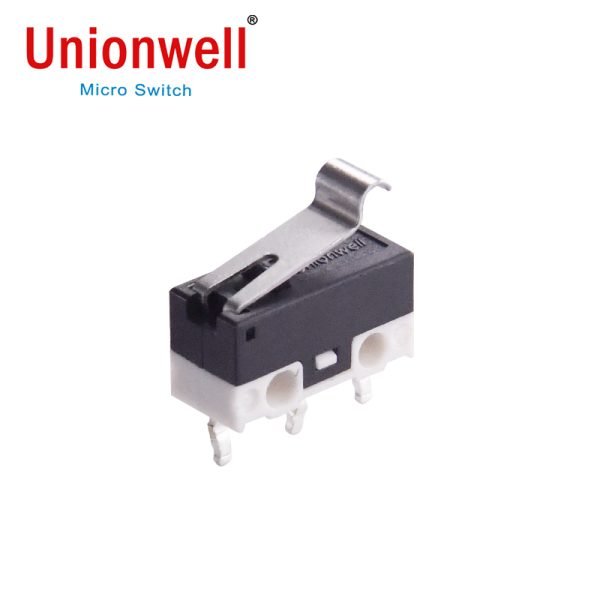

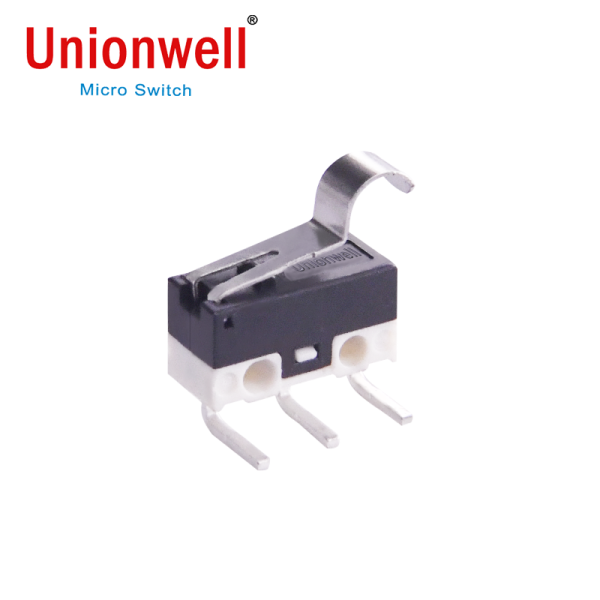

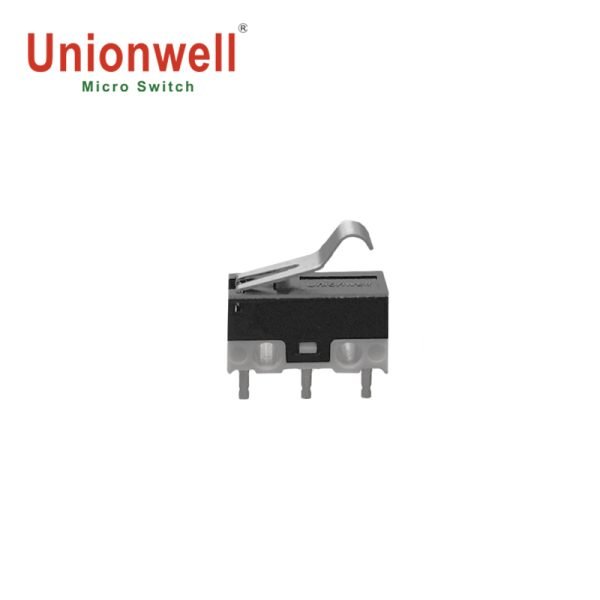

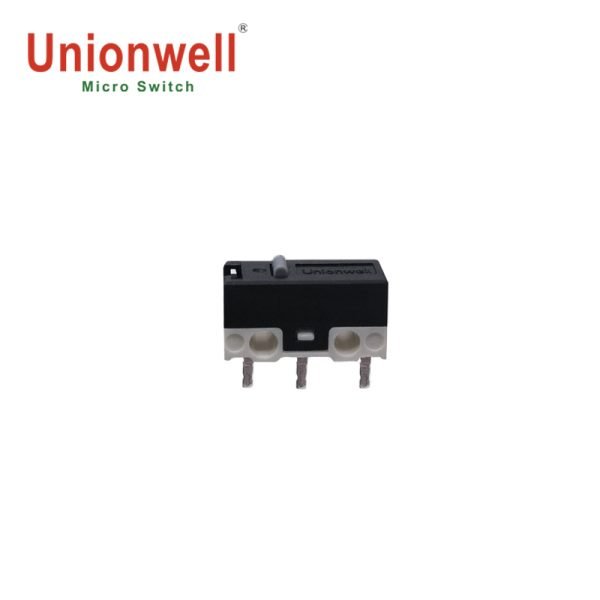

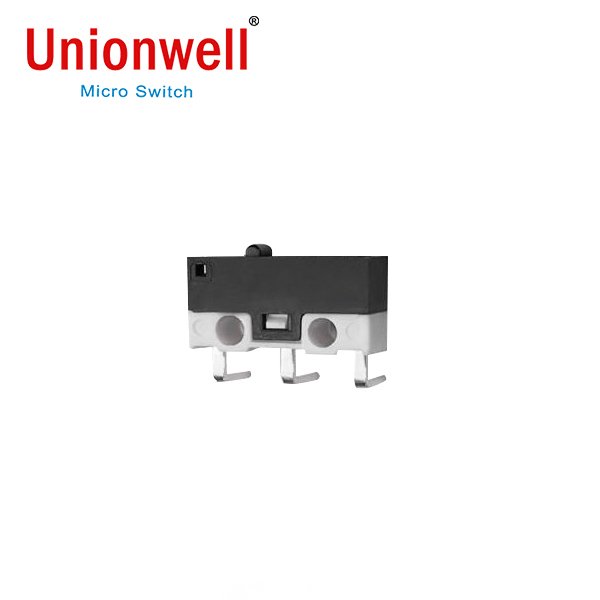

Subminiature Micro Switch(G10) Information
G10 series subminiature micro switches have obtained global safety approvals, and this type of miniature micro switch has a small contact size and long lifetime.
G10 subminiature microswitches have various levers and terminals to meet customers’ needs .what’s more, the G10 snap-action micro switch can widely be used in appliances, electronic equipment, automotive, etc.
Subminiature Micro Switch(G10) Parameters
| Rating | P1 | 0.1A 48VDC/125VAC(Gold Plated Optional) |
| 03 | 1A/3A 125VAC | |
| Operating Frequency | Electrical | 10~30 Â Cycles/Minute |
| Mechanical | 120 Cycles/Minute | |
| Contact Resistance(initial value) | 100mΩ Max (Depends On P/Ns) | |
| Insulation Resistance | at 500VDC,100MΩ Min. | |
| Dielectric Strength | AC 600VAC RMS (50-60HZ) | |
| Storage Temperature | -40°C~+85°C | |
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | 6,000 ~ 100,000 cycles(Depends On P/Ns) |
| Mechanical | 1,000,000 Cycles | |
| Unit Net Weight | About 0.5g(Straight PCB Type Without Lever) | |
