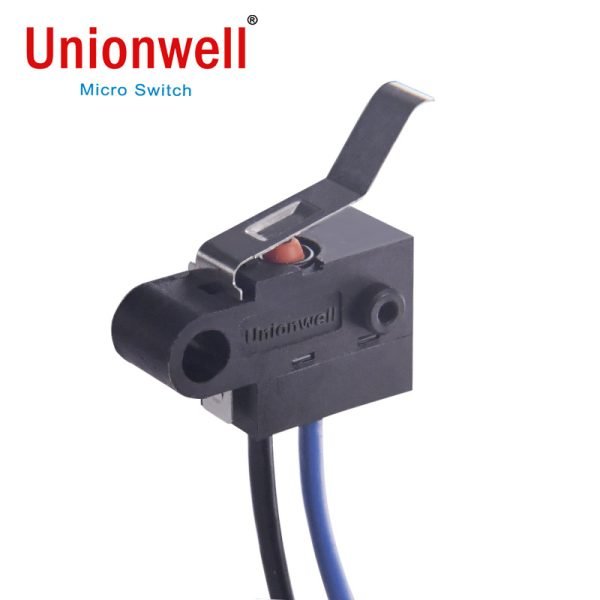

Subminiature Sealed Micro Switch (G10B) Information

  • Customized 15# Lever
  • Small Compact Size
  • Long Life And High Reliability
  • Designed For Waterproof(IP67) And Dustproof
  • Widely Used In Appliance And Industry Control


Subminiature Sealed Micro Switch G10B Series.pdf

Subminiature Sealed Micro Switch (G10B) Parameters

Rating P1 0.1A 125/250VAC 30VDC
03 3A  125/250VAC 30VDC
Operating Frequency Electrical 10~30  Cycles/minute
Mechanical 120 Cycles/minute
Contact Resistance(initial value) 100mΩ Max
Insulation Resistance at 500VDC,100MΩ Min.
Dielectric Strength AC 600VAC RMS (50-60HZ)
Storage Temperature -40°C~+85°C
Storage Humidity 85%RH Max
Service Life Electrical 10,000 Cycles
Mechanical 300,000 Cycles

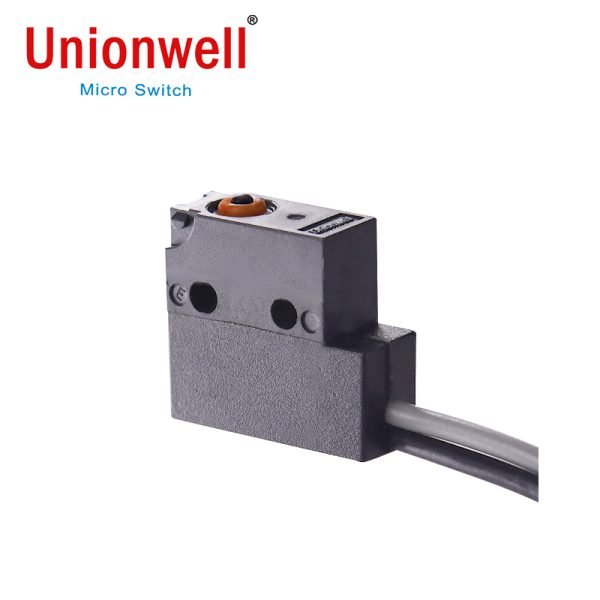

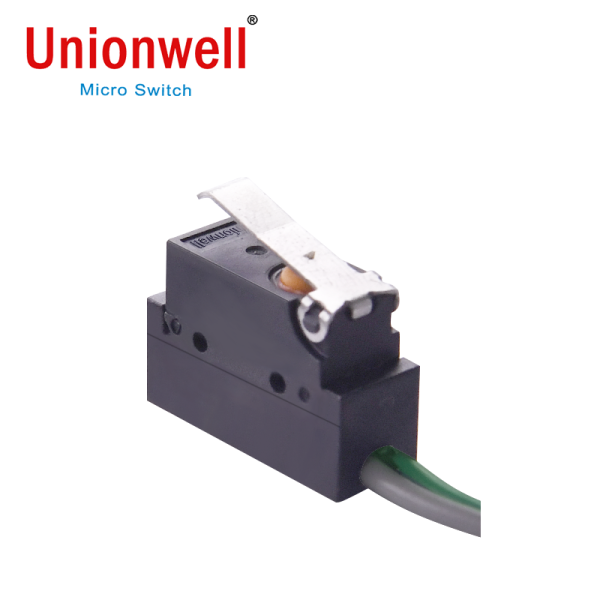

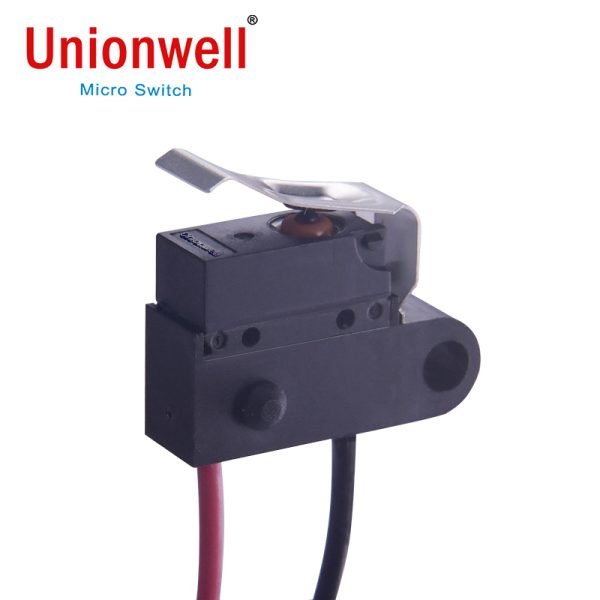

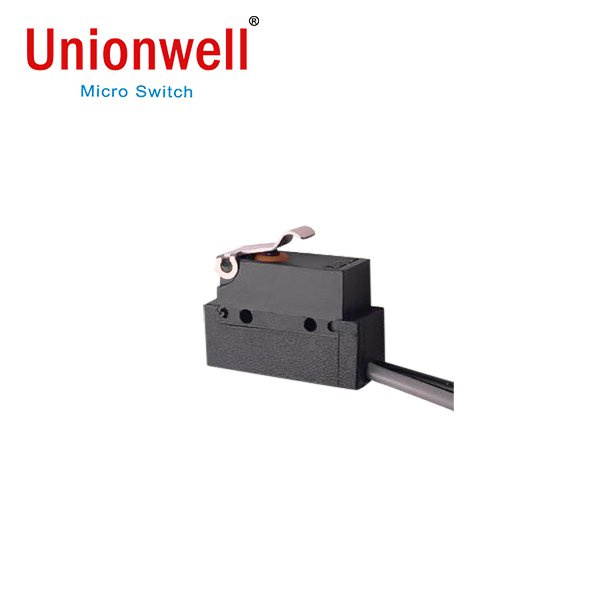

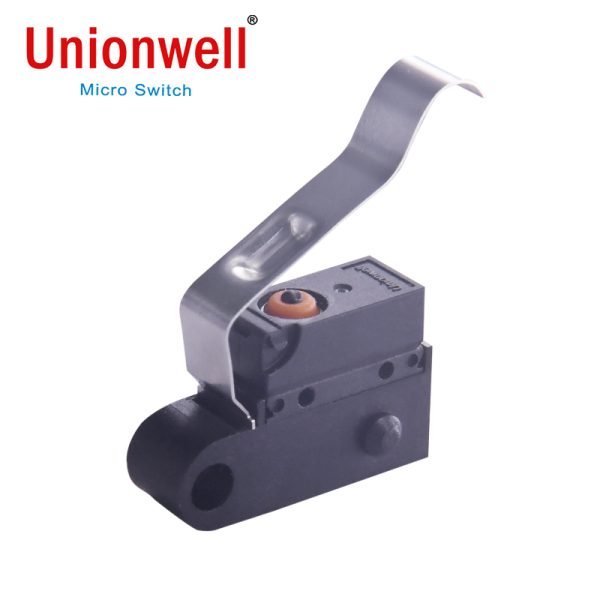

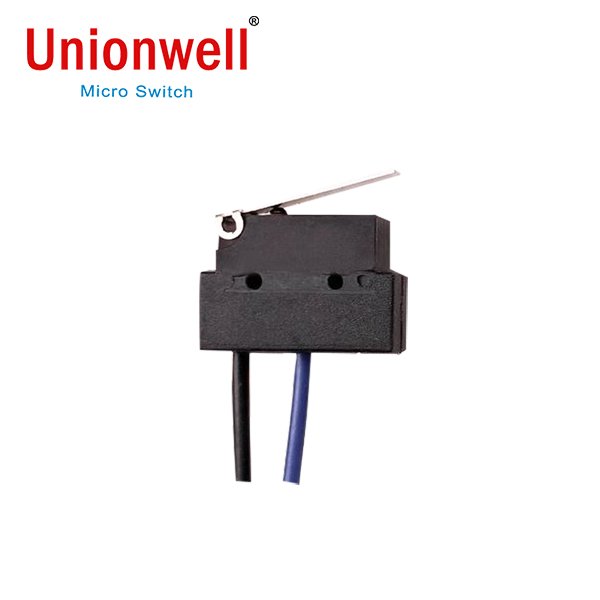

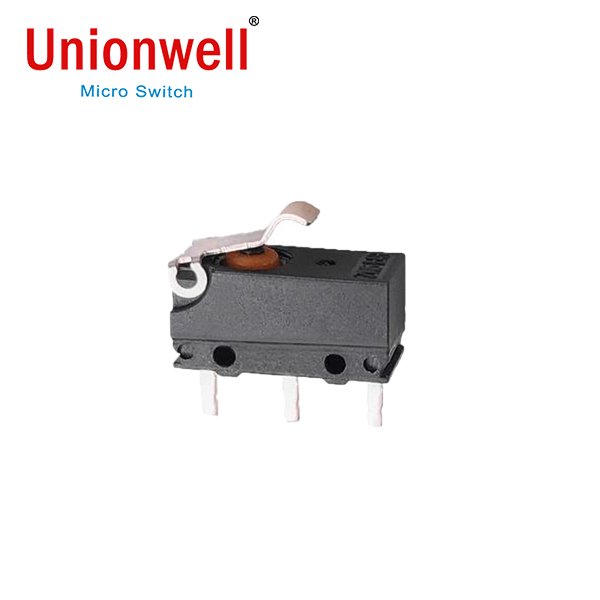

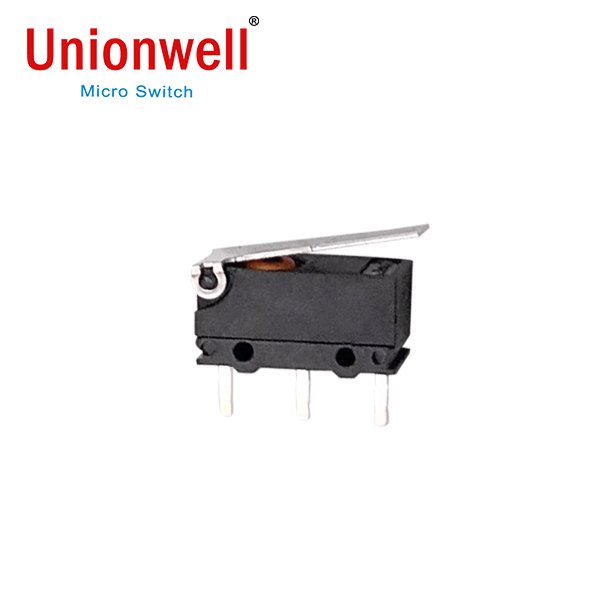

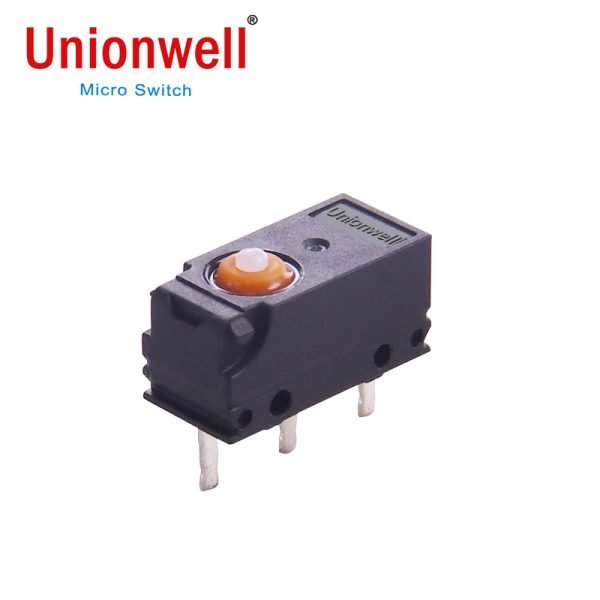

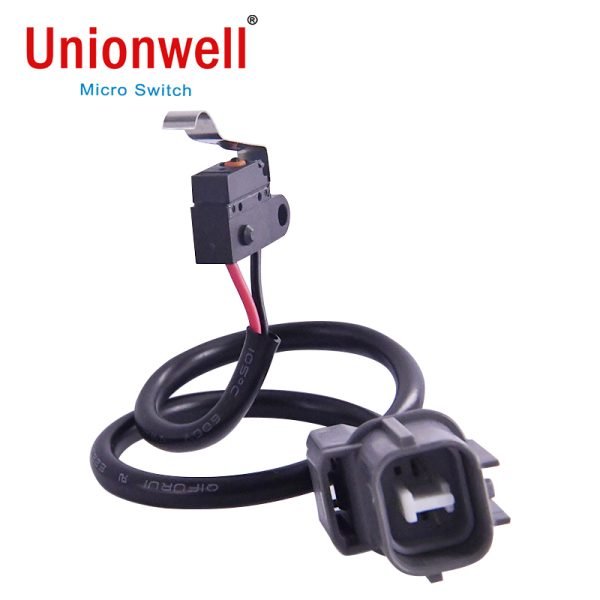

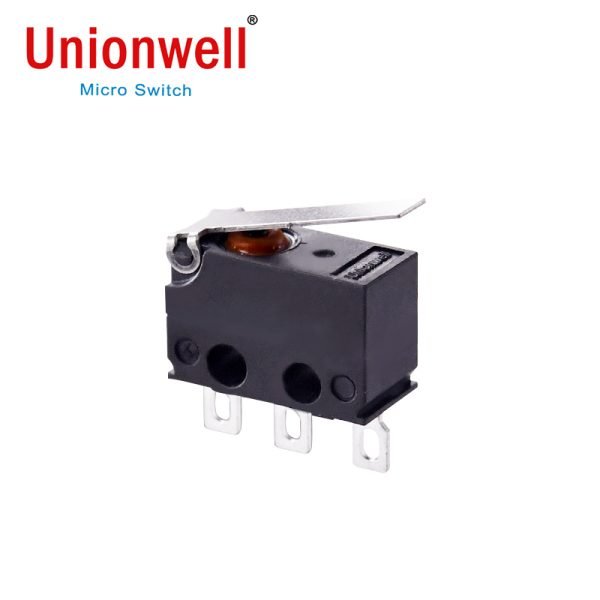

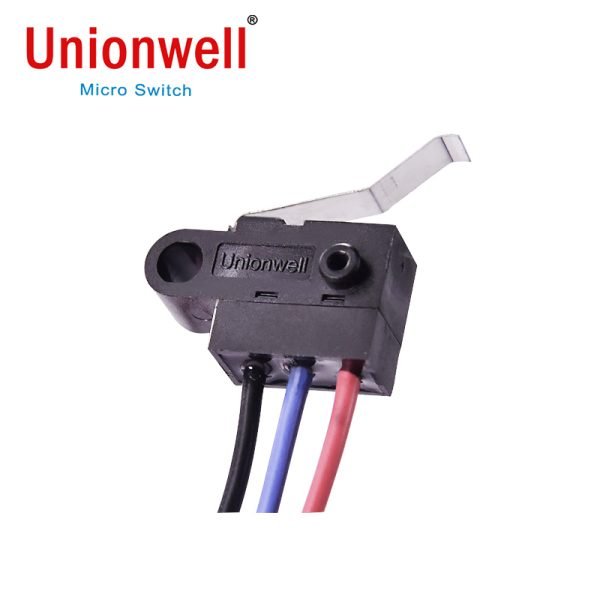

Subminiature Sealed Micro Switch (G10B) Products
