Dual Circuit Loop Momentary Micro Switches(G307A)-Dual Circuit Loop Momentary Micro Switch

Place Of Origin Guangdong, China (Mainland)
Brand Name Unionwell
Model Number G307A-150R00BAU
Rating 50mA 18VDC
50μA 5VDC
Operating Force
(Max Value)		 150gf Max
Terminals SMD
terminal
Lever Pin
Plunger
Only

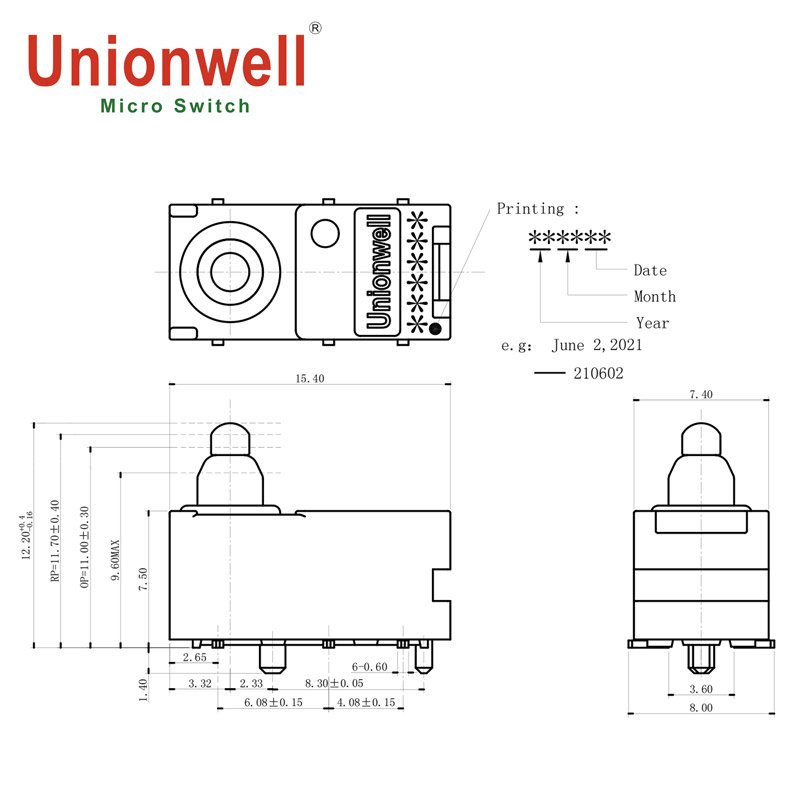

Switch Dimensions L*W*H
15.4*7.4*7.5
Circuitry DPDT
1, 2,3 Clipping
Contact



Contact Us
[google-translator]

The Features Of Dual Circuit Loop Momentary Micro Switch

  1. Small size, compact structure, high reliability, long life;
  2. Applied to micro-current load industries such as automotive industry and electronic equipment;
  3. Two welding processes options – DIP or SMT;
  4. High protection performance, protection level IP67
  5. Momentary structure, dual loop synchronization time ≤15ms;

The Parameters Of Dual Circuit Loop Momentary Micro Switch

Rating G307A 50mA 18VDC 50μA 5VDC
Operating Frequency Electrical 15~20 Cycles/Min 1~100mm/s
Mechanical 15~20 Cycles/Min
Initial Contact Resistance 75mΩ Max.
Insulation Resistance 100mΩ Min.
Dielectric Strength Between Terminals: AC100V
Between Terminal and Housing: AC100V
Operating Temperature  -40°C ~+85°C
Service Life Electrical 300,000 Cycles
Mechanical 500,000 Cycles



Arcade Microswitch

Our Advantage

Arcade Microswitch

Packing

Arcade Microswitch

Shipping

Arcade Microswitch

FAQ

Q1. Could you accept OEM or ODM?
A: Yes, we have a strong R&D team. We have rich experience in OEM&ODM.

Q2. Do you have micro switch patents?
A: Yes, we have more than 200 micro switch patents.

Q3. How many employees are in your factory?
A: There are over 600 employees at present in our factory.

Q4. How many engineers are in your R&D department?
A: Around 60 engineers in the R&D department, half of them own more than 20 years of micro switch experience.

Q5. What’s the capacity per month?
A: Over 8 million pieces per month for the micro switch series.
Over 20 million pieces per month for the keyboard switch series.
